Introduction: Hello dears, in this article i will explain that how we can create Visualization: Bar Chart using asp.net. This is very helpful artucle for the asp.net deveploer to creating a mast graph in asp.net. This type of chart you can create to showing purchase and sale or sale and expences or yes or no etc in different years.

Implementation: Here i am taking the reference from the below link . http://code.google.com/apis/chart/interactive/docs/gallery/barchart.html

Google use javascript code for the implementation of this graph. I am using same javascript code but am giving also my asp.net experience with this code. And create the same graph in Asp.Net.

Code for .aspx page:

<title>Bar Graph using Google Visualization</title>

<%--the below two javascripts are needed to run this program you can

also download this script from the below link --%>

</head>

<body>

<div>

<asp:Literal ID="lt" runat="server"></asp:Literal>

</div>

</form>

</body>

Code for aspx.cs page:

using System;

using System.Collections;

using System.Configuration;

using System.Data;

using System.Linq;

using System.Web;

using System.Web.Security;

using System.Web.UI;

using System.Web.UI.HtmlControls;

using System.Web.UI.WebControls;

using System.Web.UI.WebControls.WebParts;

using System.Xml.Linq;

using System.Data.SqlClient;

using System.Text;

public partial class chart_sale_purchage : System.Web.UI.Page

{

// complete code of Visualization: Combo Chart

SqlConnection con = new SqlConnection();

// here am declairing the stringbuilder class

StringBuilder str = new StringBuilder();

protected void Page_Load(object sender, EventArgs e)

{

// here i am declare connection

con.ConnectionString = ConfigurationManager.ConnectionStrings["cn"].ConnectionString;

con.Open();

if (Page.IsPostBack == false)

{

// here i am calling function chart_bind(); in the page load event of the page

chart_bind();

}

private void chart_bind()

{

// here i am using SqlDataAdapter for the sql server select query

SqlDataAdapter adp = new SqlDataAdapter("select top(7)* from tb_exp", con);

// here am taking datatable

DataTable dt = new DataTable();

try

{

// here datatale dt is fill wit the adp

adp.Fill(dt);

// this string m catching in the stringbuilder class

// in the str m writing same javascript code that is given by the google.

// but m changing only below line

//data.addColumn('string'(datatype), 'Year'(columnname according to the sql table));

//data.addColumn('number'(datatype), 'Sales'(columnname according to the sql table));

//data.addColumn('number'(datatype), 'Expenses'(columnname according to the sql table));

// my data that will come from the sql server

// in the below line i need " in place of *

// stringbuilder can't return us " so at the last line i am

// replacing * with the " using Replace('*', '"'); function

// and other code is same like the google code

str.Append(@"<script type=text/javascript> google.load( *visualization*, *1*, {packages:[*corechart*]});

google.setOnLoadCallback(drawChart);

function drawChart() {

var data = new google.visualization.DataTable();

data.addColumn('string', 'Year');

data.addColumn('number', 'Sales');

data.addColumn('number', 'Expenses');

data.addRows(" + dt.Rows.Count + ");");

Int32 i;

//here i am using for loop to fetch multiple recorod from the database

for (i = 0; i <= dt.Rows.Count - 1; i++)

{

// i need this type of output " data.setValue(0, 0, '2004');",(1, 0, '2005');" * so on in the first line so for this

//m using i for the 1& 2 and so on . and after this i am writting zero and after this year using datatable

str.Append("data.setValue( " + i + "," + 0 + "," + "'" + dt.Rows[i]["year"].ToString() + "');");

// i need this type of output " data.setValue(0, 1, 'sales');",(1, 1, 'sales');" * so on in the first line so for this

//m using i for the 1& 2 and so on . and after this i am writting 1 and after this sales using datatable

str.Append("data.setValue(" + i + "," + 1 + "," + dt.Rows[i]["sales"].ToString() + ") ;");

// i need this type of output " data.setValue(0,2, 'expences');",(1, 2, 'sales');" * so on in the first line so for this

//m using i for the 1& 2 and so on . and after this i am writting 2 and after this expences using datatable

str.Append(" data.setValue(" + i + "," + 2 + "," + dt.Rows[i]["expences"].ToString() + ");");

}

// the other code same like as google's javascript code

str.Append(" var chart = new google.visualization.BarChart(document.getElementById('chart_div'));");

// in the below line you can set width height of the chart according to your need

str.Append(" chart.draw(data, {width: 600, height: 240, title: 'Company Performance',");

// str.Append(" var chart = new google.visualization.BarChart(document.getElementById('chart_div'));");

str.Append("vAxis: {title: 'Year', titleTextStyle: {color: 'green'}}");

str.Append("}); }");

str.Append("</script>");

lt.Text = str.ToString().TrimEnd(',').Replace('*', '"');

con.Close();

}

catch

{

}

finally

{

con.Close();

}

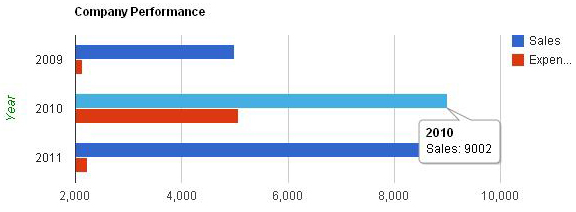

See output in this image:

Sql Script for database:

/****** Object: Table [dbo].[tb_exp] Script Date: 07/07/2011 16:40:07 ******/

IF EXISTS (SELECT * FROM sys.objects WHERE object_id = OBJECT_ID(N'[dbo].[tb_exp]') AND type in (N'U'))

DROP TABLE [dbo].[tb_exp]

/****** Object: Table [dbo].[tb_exp] Script Date: 07/07/2011 16:40:07 ******/

SET ANSI_NULLS ON

SET QUOTED_IDENTIFIER ON

IF NOT EXISTS (SELECT * FROM sys.objects WHERE object_id = OBJECT_ID(N'[dbo].[tb_exp]') AND type in (N'U'))

BEGIN

CREATE TABLE [dbo].[tb_exp](

[id] [bigint] IDENTITY(1,1) NOT NULL,

[year] [varchar](50) COLLATE SQL_Latin1_General_CP1_CI_AS NULL,

[sales] [varchar](50) COLLATE SQL_Latin1_General_CP1_CI_AS NULL,

[expences] [varchar](50) COLLATE SQL_Latin1_General_CP1_CI_AS NULL,

CONSTRAINT [PK_tb_exp] PRIMARY KEY CLUSTERED

(

[id] ASC

)WITH (PAD_INDEX = OFF, STATISTICS_NORECOMPUTE = OFF, IGNORE_DUP_KEY = OFF, ALLOW_ROW_LOCKS = ON, ALLOW_PAGE_LOCKS = ON)

)

END

SET IDENTITY_INSERT [dbo].[tb_exp] ON

INSERT [dbo].[tb_exp] ([id], [year], [sales], [expences]) VALUES (1, N'2009', N'5000', N'2136')

INSERT [dbo].[tb_exp] ([id], [year], [sales], [expences]) VALUES (2, N'2010', N'9002', N'5063')

INSERT [dbo].[tb_exp] ([id], [year], [sales], [expences]) VALUES (3, N'2011', N'8800', N'2225')

SET IDENTITY_INSERT [dbo].[tb_exp] OFF

Conclusion

Through this article, you have learned how to create Visualization: bar Chart using the google’s javascript code as well as asp.net code.

Okas guys, enjoy the code. Meet in next article again.

Thanx.
